FE Surface Loading

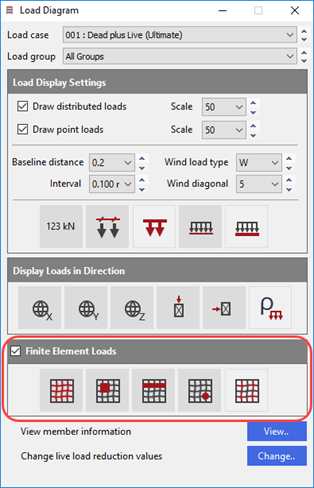

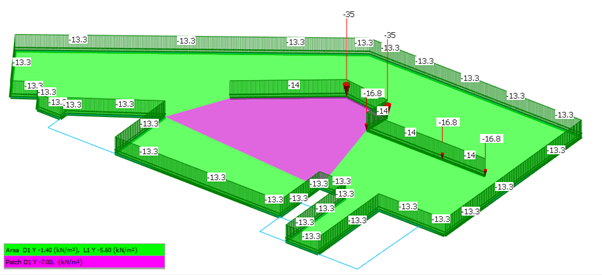

FE Loads (📄 Loading) are applied to FE surfaces as area loads, patch loads, line loads and point loads. These can be viewed using the Frame Loads Diagram (📄 Viewing Loads) settings. Tick the Finite Element Loads box and select which types of loads to display.

Also see manual on MasterFrame Finite Element Analysis (📄 FE Analysis).
