MasterBeam Concrete Beam Designer

The MasterBeam Concrete Beam Designer is ideal for the design of single and multi-span beams and beams in sub-frames. It uses the MasterFrame analysis engine and the MasterKey Concrete design modules to carry out the sub-frame analysis and beam design. The common MasterSeries interface makes the program very simple and intuitive to use.

A sub-frame or continuous beam with up to 16 varying spans can be entered, with the end spans being cantilevers if desired. Columns can be included to give a sub-frame analysis, or omitted to produce a beam only analysis.

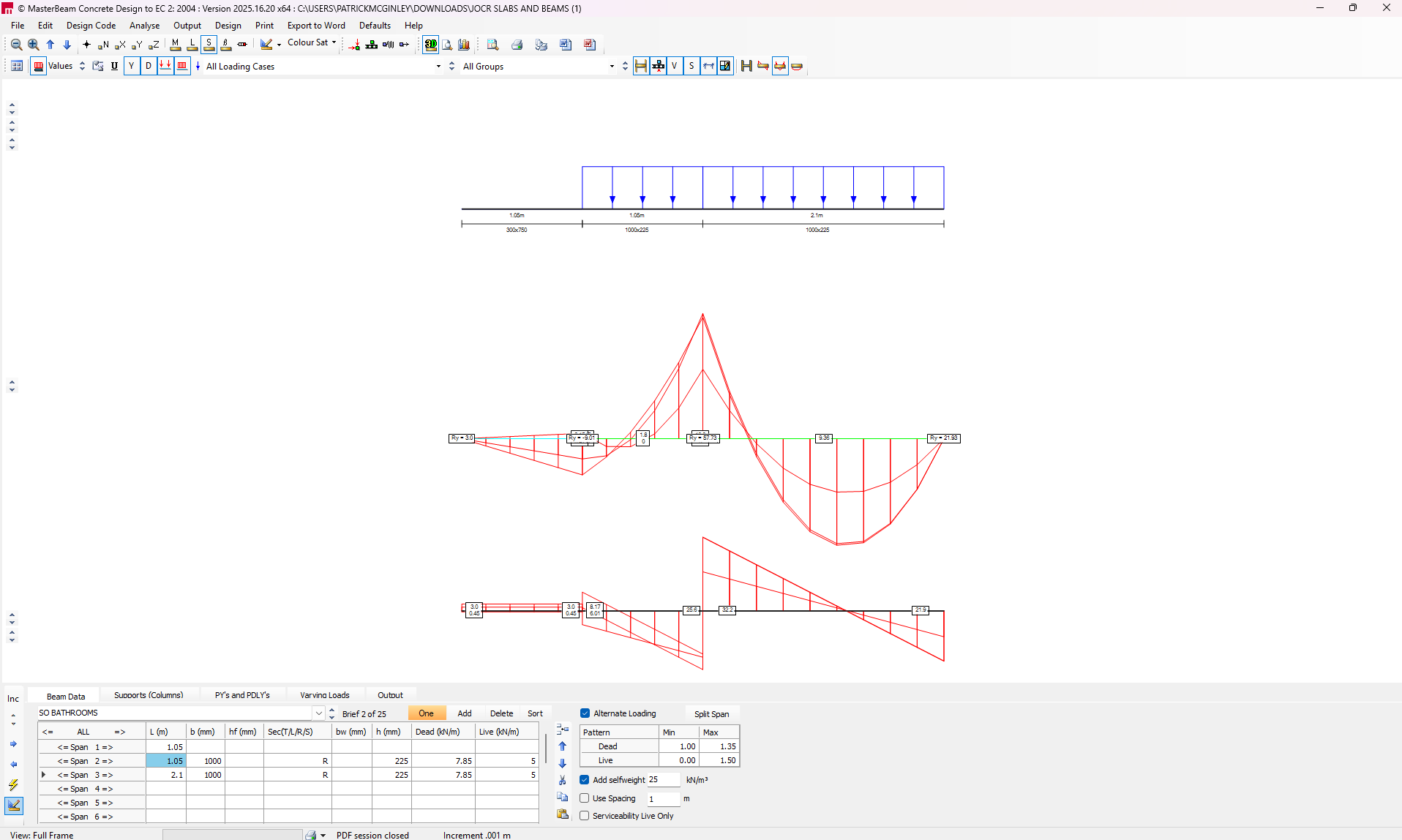

Beam and Frame Analysis

Concrete Beam Design Interface
